Coverage Collection

Otto can collect gcov coverage data from remote hosts after an OttoSuite run and generate multi-tier HTML coverage reports.

Coverage works in two steps:

  1. Collect — otto test --cov fetches .gcda files from remote hosts into the suite’s output directory.

  2. Report — otto cov merges .gcda files from one or more test runs and renders an HTML report.

Prerequisites

The following system packages must be installed on the otto host (the machine running otto test and otto cov):

Package

Purpose

Required

lcov

Capture and merge .info files

Yes

gcov

Process .gcda files into .info

Yes

On remote hosts (the machines running the instrumented product):

  • The product must be compiled with gcc --coverage (or -fprofile-arcs -ftest-coverage).

  • .gcda files must be written to a known directory.

Install on Debian/Ubuntu:

sudo apt-get install lcov

Install on RHEL/CentOS:

sudo yum install lcov

gcov is included with GCC. Ensure the gcov version matches the GCC version used to compile the product.

Configuration

Add a [coverage] section to your repo’s .otto/settings.toml:

[coverage]
# Required: where .gcda files live on remote hosts
gcda_remote_dir = "/var/coverage/myproduct"

This is the only required configuration. The source root is auto-detected by walking up from the current directory to find the .otto/ directory. Path mappings between build-host paths and local source paths are auto-discovered from the .info and .gcno files.

Per-Host Toolchain

Each host can specify its own toolchain (gcov, lcov) for coverage processing. This is configured via the toolchain field in hosts.json — see the host guide for the full syntax.

When no explicit toolchain is configured, otto resolves tools in this order:

  1. Explicit config — toolchain object in hosts.json.

  2. Auto-discovery — otto inspects .gcno files with strings to find the compiler path, then derives the matching gcov. Both GCC and Clang families are detected. For Clang, a wrapper script is generated automatically (lcov requires a single-command --gcov-tool).

  3. System default — /usr/bin/gcov and /usr/bin/lcov.

Step 1: Collecting Coverage

otto test --cov TestMyDevice

This runs the test suite normally, then fetches .gcda files from all remote hosts. The files are placed in a cov/ directory in the suite’s output directory, organized by host ID:

<log_dir>/
  cov/
    <host_id_1>/
      *.gcda
    <host_id_2>/
      *.gcda

Choosing a Destination

Use --cov-dir to write coverage artifacts to an explicit location — for example, a persistent CI directory:

otto test --cov-dir /var/artifacts/myrun TestMyDevice

--cov-dir implies --cov, so the --cov flag is optional when you supply a path. The destination directory is created if it does not already exist. If it exists and is non-empty, the run aborts to avoid mixing stale coverage into the new results; pass --overwrite-cov-dir to clear it first:

otto test --cov-dir /var/artifacts/myrun --overwrite-cov-dir TestMyDevice

Omitting both --cov and --cov-dir disables coverage collection.

Pre-Run Cleanup

By default, --cov deletes stale .gcda files on remote hosts before the test run. This is important because .gcda counters are additive — without cleanup, coverage data from previous runs contaminates the current results.

To skip pre-run cleanup and accumulate coverage across runs:

otto test --cov --no-cov-clean TestMyDevice

Step 2: Generating Reports

otto cov report <output_dir> --report ./my_report

The otto cov report command takes one or more otto test output directories and produces an HTML coverage report.

Stitching Multiple Runs

To combine coverage from separate test runs into a single report:

otto cov report run1_output/ run2_output/ run3_output/ --report ./combined_report

Options

Option

Description

Default

OUTPUT_DIRS

One or more otto test output dirs with cov/

Required

--report, -r PATH

Where to place the HTML report

./cov_report

--project-name STR

Title shown in the report header

Coverage Report

--tier NAME[=PATH]

Add a coverage tier (repeatable; order = precedence, first highest)

--tier system

How It Works

  1. Discovers .gcda directories from each output directory’s cov/ subdirectory.

  2. Auto-detects the source root by finding the .otto/ directory.

  3. Resolves per-host toolchains from coverage metadata (originally written from hosts.json config or auto-discovered from .gcno files).

  4. Merges .gcda files across hosts using lcov --capture and lcov --add-tracefile, using the correct gcov per host.

  5. Auto-discovers path mappings between build-host paths and local source paths.

  6. Loads coverage data into a store, layering in any additional tiers from --tier NAME=PATH flags in the order they were given.

  7. Renders a multi-tier HTML report.

Coverage Tiers

A tier is a named layer of coverage data — system, unit, manual, integration, smoke, or anything else you wire up. Tier names are free-form: any string is a valid tier.

Tiers are added with the --tier flag, which is repeatable. The order of --tier flags is the precedence order — the first flag is the highest-precedence tier and wins the row coloring on the annotated source view when a line is hit by multiple tiers.

The implicit system tier (produced by merging the supplied .gcda directories with lcov) is referenced by --tier system with no path. Any other tier requires a path to a pre-existing .info file.

If --tier is not specified at all, the report defaults to a single system tier.

Worked Example

otto cov report runs/ \
    --tier unit=u.info \
    --tier system \
    --tier integration=i.info \
    --tier manual=m.info \
    --report ./cov_report

This produces a four-tier report with precedence unit > system > integration > manual. A line that was hit only by the manual tier is colored manual; a line hit by all four tiers is colored unit (the highest-precedence hit wins). The summary table and per-file table both grow a column per tier in the same left-to-right order.

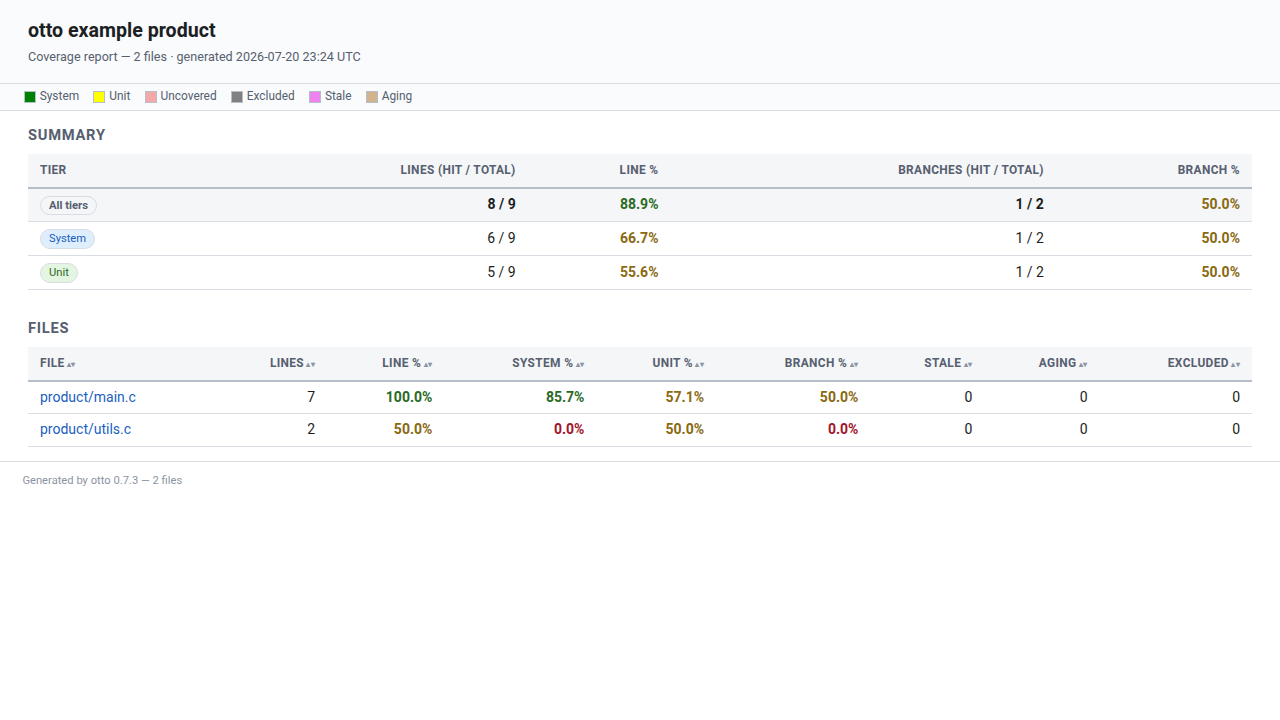

Output

The HTML report is written to the --report directory (default: ./cov_report/index.html). The report shows:

  • Project summary with aggregate (all-tier) and per-tier breakdowns

  • Sortable file table with one column per configured tier

  • Per-file pages with the same summary structure plus annotated source: per-tier hit counts, branch pills (taken/not-taken/ unreachable), and winner-take-all row coloring driven by the configured tier precedence

Cookbook: Producing .info Files for Tiers

The --tier NAME=PATH flag expects an lcov-format .info tracefile. This section shows how to produce them for the two most common tiers.

Unit Test Tier (gtest + lcov)

For a typical googletest unit-test binary built with -fprofile-arcs -ftest-coverage:

# 1. Build the unit tests with coverage instrumentation.
cd build/
cmake -DCMAKE_C_FLAGS="--coverage" \
      -DCMAKE_CXX_FLAGS="--coverage" \
      -DCMAKE_EXE_LINKER_FLAGS="--coverage" \
      ../src
make my_unit_tests

# 2. Reset any stale .gcda counters from previous runs.
lcov --directory . --zerocounters

# 3. Run the unit tests — they write .gcda files next to the .gcno files.
./my_unit_tests

# 4. Capture into an .info file.
lcov --capture --directory . --output-file unit.info

# 5. Feed the .info file into the report as the "unit" tier.
otto cov report runs/ --tier unit=$(pwd)/unit.info --tier system

Manual Test Tier (running the instrumented product directly)

To capture coverage from an interactive or ad-hoc session on a remote host — say, manually clicking through a UI or running shell scripts against a service — point the running binary at a writable directory and use GCOV_PREFIX / GCOV_PREFIX_STRIP to relocate the .gcda output away from the original build paths:

# On the remote host: run the instrumented binary in manual mode.
# GCOV_PREFIX_STRIP drops N leading components from each .gcda path so
# they land under /tmp/manual_cov instead of the build host's absolute
# paths (which usually don't exist on the device).
ssh device "GCOV_PREFIX=/tmp/manual_cov \
            GCOV_PREFIX_STRIP=4 \
            /opt/myproduct/bin/myproduct --interactive"

# Pull the .gcda files back to the otto host.
mkdir -p ./manual_gcda
scp -r device:/tmp/manual_cov/. ./manual_gcda/

# Capture into an .info file using the same .gcno files used for the
# system tier (the build directory).
lcov --capture \
     --directory ./manual_gcda \
     --base-directory /path/to/build \
     --output-file manual.info

# Layer the manual tier into the report.
otto cov report runs/ \
    --tier unit=$(pwd)/unit.info \
    --tier system \
    --tier manual=$(pwd)/manual.info

Naming Convention

A useful convention when juggling several tiers is to keep all the captured .info files alongside each test run’s output directory:

runs/
  2026-04-09_T1234/
    cov/                       # system tier (.gcda files)
    tiers/
      unit.info
      manual.info
      integration.info

That way a single otto cov report runs/2026-04-09_T1234/ invocation has everything it needs in a single tree.
