Coverage Collection¶

Otto collects gcov coverage data from remote hosts and renders multi-tier HTML coverage reports. Coverage tiers — system (e2e), unit, manual, or any other name — are declared in .otto/settings.toml; three commands drive the workflow:

1. otto cov get (also run implicitly by otto test --cov) — fetches .gcda counters from the lab and writes a pinned capture.json per board.

2. otto cov clean — zeroes remote .gcda counters ahead of a fresh collection session.

3. otto cov report — assembles every tier’s data (e2e captures, harvested unit counters, the committed manual store) into an HTML report.

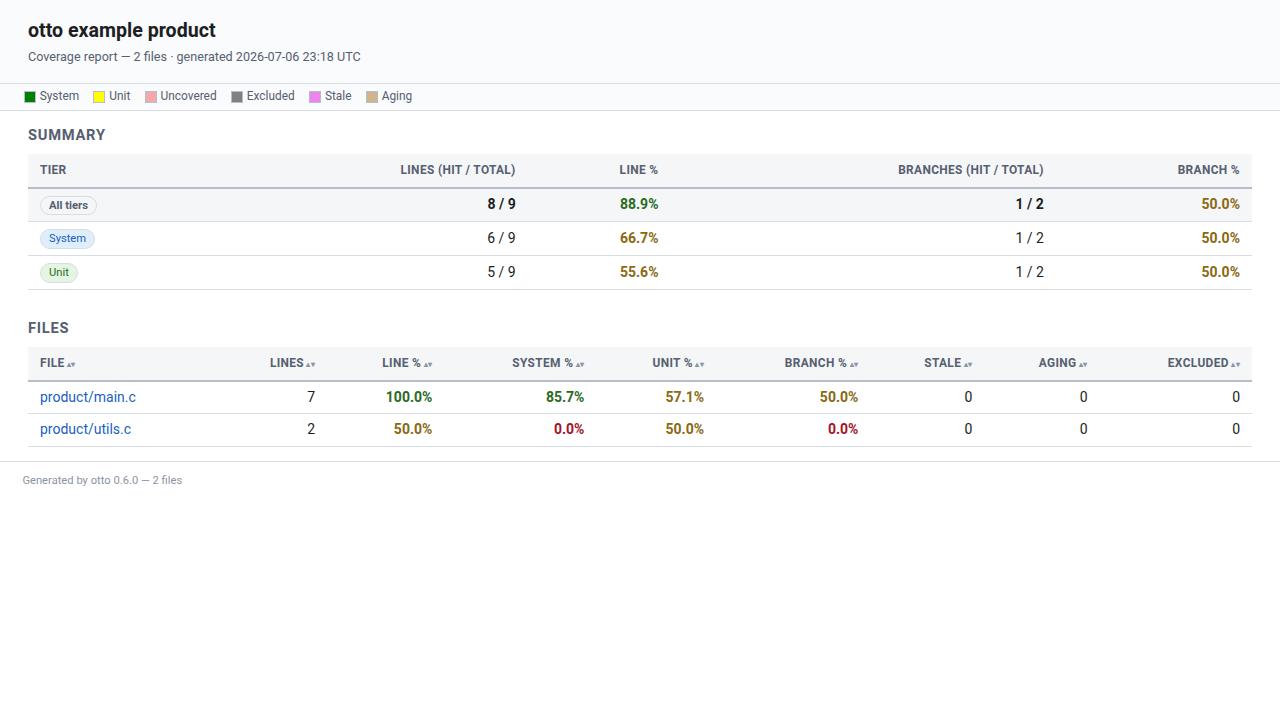

The screenshot is generated from the live report renderer at docs build time by scripts/capture_docs_media.py — the same pipeline that captures the monitor dashboard — so it can never drift from what otto cov report actually produces.

Prerequisites¶

The following system packages must be installed on the otto host (the machine running otto test and otto cov):

On remote hosts (the machines running the instrumented product):

• The product must be compiled with gcc --coverage or clang --coverage (both spell -fprofile-arcs -ftest-coverage).

• .gcda files must be written to a known directory.

For clang-built products the otto host additionally needs llvm-cov (the llvm package) — see Clang Builds below.

Install on Debian/Ubuntu:

sudo apt-get install lcov

Install on RHEL/CentOS:

sudo yum install lcov

gcov is included with GCC. Ensure the gcov version matches the GCC version used to compile the product.

Configuration¶

Add a [coverage] section to your repo’s .otto/settings.toml:

[coverage]
# Required: where .gcda files live on remote hosts
gcda_remote_dir = "/var/coverage/myproduct"

This is the only required configuration. The source root is auto-detected by walking up from the current directory to find the .otto/ directory. Path mappings between build-host paths and local source paths are auto-discovered from the .info and .gcno files.

An optional hosts regex scopes collection to a subset of the lab (matched against each host id) — this is how an SSH hop that fronts a coverage target is kept out of the coverage set without otto having to guess which hosts emit .gcda:

[coverage]
gcda_remote_dir = "/var/coverage/myproduct"
hosts = "^device.*"

Declarative Tiers¶

A tier is a named layer of coverage data. Tiers are declared under [coverage.tiers.<name>] in .otto/settings.toml — no more ad-hoc --tier NAME=PATH flags for data otto can collect itself:

[coverage.tiers.system]
kind = "e2e"                 # collected by `otto test --cov` / `otto cov get`
precedence = 1                # lower number = wins winner-take-all coloring
color = "green"                # CSS color name or "#RRGGBB"; per-kind default if omitted

[coverage.tiers.unit]
kind = "unit"
precedence = 2
harvest_dirs = ["build"]     # swept for .gcda at report time; "${sut_dir}" expands
color = "yellow"

[coverage.tiers.manual]
kind = "manual"
precedence = 3
max_age = "180d"             # optional; flag-only aging
color = "orange"

[coverage.exclusions]
markers = ["MYPROJ_NO_COV"]  # optional additions to the LCOV_EXCL_* set

Each [coverage.tiers.<name>] block:

Tier names are free-form and multiple tiers may share a kind — for example two manual tiers, manual_qa and manual_dev, both kind = "manual", distinguished by name, precedence, and color.

Backward compatibility: a settings file with no [coverage.tiers] section behaves exactly as before — an implicit system tier (kind = "e2e", precedence 1) is assumed.

Per-Host Toolchain¶

Each host can specify its own toolchain (gcov, lcov) for coverage processing. This is configured via the toolchain field in hosts.json — see the host guide for the full syntax.

When no explicit toolchain is configured, otto resolves tools in this order:

1. Explicit config — toolchain object in hosts.json.

2. Auto-discovery — otto reads the gcov version stamp from the build’s .gcno headers (a .gcno embeds no compiler path, but every compiler stamps the format version it wrote). A clang stamp resolves to llvm-cov from PATH; a GCC stamp means the default gcov already applies — a cross-GCC toolchain cannot be located from the .gcno alone and must be configured on the host.

3. System default — /usr/bin/gcov and /usr/bin/lcov.

When the resolved tool cannot actually read the build’s counters — classically a clang build captured with GNU gcov — the capture stops with a typed error naming both versions and the fix, instead of producing an empty or wrong report.

Clang Builds¶

Products compiled with clang --coverage emit gcov-compatible counters in the GCC 4.8-era file format (clang stamps 408*), which modern GNU gcov refuses. They must be read by llvm-cov gcov:

• Auto-discovery: with llvm-cov (or a versioned llvm-cov-<N>) on PATH, otto detects the clang stamp and uses it automatically — no configuration needed.

• Explicit config: point the host toolchain’s gcov at an llvm-cov binary; otto substitutes the required one-word llvm-cov gcov wrapper for lcov --gcov-tool at capture time.

{
  "toolchain": {
    "sysroot": "/usr/lib/llvm-18",
    "gcov": "bin/llvm-cov"
  }
}

Branch coverage (BRDA records) flows through the llvm path as well; note that llvm-cov’s branch counts are coarser than GNU gcov’s (hit/not-hit is reliable, exact execution counts may differ).

Retrieving Coverage: otto cov get¶

otto cov get is the single retrieval command. It fetches .gcda counters from every host matched by [coverage].hosts — Unix hosts over the network, embedded boards over the console — parses them with the discovered toolchain, and writes one pinned capture.json per board plus debug artifacts (the raw .gcda and the toolchain’s .gcov/.info intermediates) into the command’s output directory:

<output>/
  cov/
    <board_id>/
      capture.json
      *.gcda
      board.info
      board.resolved.info

By default otto cov get targets the lab’s sole e2e-kind tier and writes a capture that is not committed anywhere — it lives in the output directory, the same as a run’s other artifacts. Selecting a manual-kind tier switches the command into manual-capture mode: it requires --ticket, stamps tester identity onto the capture, and additionally copies the capture into the repo’s committed store at .otto/coverage/manual/:

# Default: retrieve against the sole e2e-kind tier.
otto cov get

# Manual session: pin a capture, attach a ticket, commit it.
otto cov get --tier manual --ticket PROJ-123 --note "verified failover via GDB"

Options¶

--ticket, --note, --tester-name, and --tester-email are only meaningful for a manual-kind retrieval; passing them against an e2e-kind tier has no effect (an automated pull has no human tester to attribute).

Retrieval requires a git repository — the pin and, for a dirty tree, the offset remap both need it. Outside a git repo, otto cov get refuses with a clean error; otto cov report’s --tier NAME=PATH escape hatch remains available for git-less flows (see The --tier NAME=PATH escape hatch). The SUT directory does not have to be the repository root: a SUT checked out as a subdirectory of a larger repository (a monorepo layout) anchors its captures against the enclosing repo — its HEAD is the pin, and its working-tree state decides dirtiness.

Locally-modified builds¶

Manual testing frequently happens against a locally modified build — printf-and-recompile, a GDB session poking at a running binary. These sessions still run instrumented code, so real counters exist, but their line numbers describe the modified tree, not the committed one. otto cov get detects a dirty working tree (git status --porcelain non-empty) automatically and remaps the retrieved hits onto committed-code line numbers before writing the capture — added/changed lines’ hits are dropped (crediting untested code would be wrong), unchanged lines remap exactly even when they’ve shifted. The capture records dirty_remap: true, which shows up in the report’s provenance table; no diff is stored.

The capture file¶

Each board’s capture.json records line/branch hits in committed-code coordinates, the commit they’re pinned to, and — for a manual capture — the human metadata:

{
  "schema": 1,
  "tier": "manual",
  "pin": "<commit sha>",
  "dirty_remap": true,
  "captured_at": "2026-07-02T18:40:00Z",
  "tester": {"name": "chris", "email": "chriscoll93@gmail.com"},
  "ticket": "PROJ-123",
  "note": "verified failover via GDB",
  "labs": ["lab1"],
  "board": "mps2_an385",
  "files": {
    "src/foo.c": {
      "blob": "<git blob sha of src/foo.c at pin>",
      "lines": {"12": 3, "13": 1},
      "branches": {"12": [[0, 0, 2], [0, 1, 0]]}
    }
  }
}

pin is the commit whose coordinates the line numbers mean; each file’s blob is the git blob SHA of that file at the pin — the rebase-tolerant anchor Staleness and aging checks against. An e2e-kind capture has the same shape but omits tester/ticket/ note; at report time its pin acts as a strict guard — it must equal the tree’s current HEAD — and a dirty working tree only triggers a line-number remap onto the current tree, never the manual tier’s validity pass (see Stale Builds: “stamp mismatch” and the e2e pin guard).

Collecting Coverage During a Test Run: otto test --cov¶

otto test --cov TestMyDevice

This runs the test suite normally, fetches .gcda files from every matched host, and — on a best-effort basis — produces a pinned capture.json per board against the lab’s default e2e-kind tier using the same capture-production machinery as otto cov get. This tail never fails an otherwise-successful test run: a non-git SUT, misconfigured tiers, or a stamp mismatch during merge are logged and swallowed, leaving the raw .gcda artifacts on disk for manual recovery via otto cov get. The files land in a cov/ directory in the suite’s output directory, organized by board:

<log_dir>/
  cov/
    <board_id_1>/
      capture.json
      *.gcda
    <board_id_2>/
      capture.json
      *.gcda

Choosing a Destination¶

Use --cov-dir to write coverage artifacts to an explicit location — for example, a persistent CI directory:

otto test --cov-dir /var/artifacts/myrun TestMyDevice

--cov-dir implies --cov, so the --cov flag is optional when you supply a path. The destination directory is created if it does not already exist. If it exists and is non-empty, the run aborts to avoid mixing stale coverage into the new results; pass --overwrite-cov-dir to clear it first:

otto test --cov-dir /var/artifacts/myrun --overwrite-cov-dir TestMyDevice

Omitting both --cov and --cov-dir disables coverage collection.

Inline Reports¶

--cov-report renders the HTML report immediately after the run, without a separate otto cov report invocation. It goes through the same collection model: the configured tiers (colors, precedence, custom exclusion markers), the unit-tier harvest, and the committed manual store all apply, exactly as they would in a standalone report. Like the capture tail, inline report generation is best-effort — a report-side problem is logged and never fails an otherwise-successful test run.

Pre-Run Cleanup¶

By default, --cov deletes stale .gcda files on remote hosts before the test run. This is important because .gcda counters are additive — without cleanup, coverage data from previous runs contaminates the current results.

To skip pre-run cleanup and accumulate coverage across runs:

otto test --cov --no-cov-clean TestMyDevice

Cleaning Counters: otto cov clean¶

otto cov clean zeroes .gcda counters on the lab’s coverage hosts without fetching anything — useful ahead of a manual session when the previous capture has already been retrieved:

otto cov clean

It targets the same host selection otto cov get fetches from, but Unix hosts only. Embedded coverage-hosts need a product-side cov_reset LLEXT function mirroring cov_dump (a later phase); when the lab has any, the command logs a note and exits 0 rather than failing. A lab with only embedded coverage hosts is likewise not an error — there is simply nothing this phase can clean yet.

Coverage Tiers¶

Every tier’s kind selects how otto cov report collects its data:

Only manual captures are pinned and committed to the repo. E2E data comes from the output directories of previous otto runs; unit data is swept fresh from the build tree every time a report is generated — there is no run discipline imposed on it.

Three-tier walkthrough¶

e2e — run the suite with coverage on:

otto test --cov TestMyDevice

unit — build your unit tests with coverage instrumentation and run them as you always have; .gcda files land next to the .gcno files under the tier’s configured harvest_dirs (e.g. build/):

cmake -DCMAKE_C_FLAGS="--coverage" -DCMAKE_CXX_FLAGS="--coverage" \
      -DCMAKE_EXE_LINKER_FLAGS="--coverage" -B build ..
cmake --build build --target my_unit_tests
./build/my_unit_tests

No lcov invocation and no --tier unit=... flag are needed — as long as [coverage.tiers.unit].harvest_dirs points at build, otto cov report finds and merges the counters itself.

manual — retrieve and pin a session against the instrumented target, attaching a ticket:

otto cov get --tier manual --ticket PROJ-123 --note "verified failover via GDB"
git add .otto/coverage/manual/
git commit -m "cov: manual verification for PROJ-123"

Then generate a single report covering all three:

otto cov report path/to/e2e_run_output/ --report ./cov_report

otto cov report reads the e2e capture(s) from the given output directory, harvests the unit tier’s harvest_dirs from the current build tree, and loads every committed manual capture automatically — no path arguments needed for the unit or manual tiers.

Staleness and aging¶

Manual captures are pinned evidence — as the repo moves on, otto must decide whether that evidence still applies. A per-file anchor chain (current blob SHA → blob diff → pin-commit diff → unverifiable) resolves each capture’s lines to one of these states at report time:

Stale vs. aging, precisely: stale = the code changed out from under the evidence; aging = the code is unchanged but the evidence is old.

Validity only applies to the manual tier. E2E captures use a strict pin merge guard instead — see Stale Builds: “stamp mismatch” and the e2e pin guard. Unit tiers carry no validity states; they’re harvested fresh every report, so there’s nothing to go stale (a .gcda older than its .gcno only produces a “may be stale” warning, never a revoke).

Generating Reports: otto cov report¶

otto cov report <output_dir> --report ./my_report

otto cov report assembles a store from every source available:

1. E2E captures — capture.json files under each given output directory’s cov/<board_id>/, subject to the pin guard below. Board directories with no capture.json fall back to the legacy .gcda-merge path (back-compat with pre-tier output directories).

2. Unit harvest — every unit-kind tier’s harvest_dirs, swept fresh from the current build tree.

3. Manual store — every capture committed under the repo’s .otto/coverage/manual/, loaded automatically with the validity pass applied.

OUTPUT_DIRS is now optional: with none given, the report is built from the committed manual-capture store (and any configured unit tiers) alone.

A report whose assembled store ends up empty — no captures, no harvested counters, no manual store — exits 1 with a one-line error naming every location that was searched, so a misconfigured CI job fails loudly instead of publishing a blank report.

Stitching Multiple Runs¶

To combine coverage from separate test runs into a single report:

otto cov report run1_output/ run2_output/ run3_output/ --report ./combined_report

Options¶

Stale Builds: “stamp mismatch” and the e2e pin guard¶

gcov embeds a build stamp in both the .gcno notes files (written at compile time) and the .gcda data files (written at run time). Raw counters are therefore only meaningful against the exact build that produced them — and the moment they are paired is collection, when otto cov get (or the otto test --cov tail) merges the fetched .gcda against the local .gcno graph. If the product was rebuilt in between, gcov refuses the data (stamp mismatch with notes file) and otto raises a CoverageDataMismatchError explaining the cause instead of dumping raw lcov output:

Coverage data does not match the current product build (gcov reports a stamp mismatch between .gcda data and .gcno notes files). The product was likely rebuilt after otto test --cov collected this data — coverage must be reported against the exact build that produced it. Re-run otto test --cov and report on the new output directory.

Once a capture.json exists, the build tree no longer matters: the capture holds parsed hits, not raw counters, so reporting on a capture-bearing run directory is immune to rebuilds — recompiling the product between collection and otto cov report changes nothing. The same rebuild against a pre-capture run directory (an older otto’s output, loaded via the legacy .gcda-merge fallback) still re-pairs raw counters at report time and fails with the error above.

A capture carries its own, git-based guard instead: its recorded pin must equal the tree’s current HEAD. A capture taken at a different commit — the tree moved on since collection — fails the report with a clean error naming both commits, rather than silently reporting numbers for the wrong tree; the recovery is to collect fresh coverage with otto test --cov (or otto cov get) and report on the new output. A working tree that is merely dirty at report time (same HEAD, uncommitted edits) does not fail: the e2e capture’s hits are remapped from committed-code coordinates onto the current tree — the report-time mirror of the dirty-tree remap at retrieval — with a warning, and hits on locally-modified lines are omitted rather than misattributed.

The --tier NAME=PATH escape hatch¶

--tier NAME=PATH remains available as a git-less fallback for data the declarative model doesn’t produce — a foreign lcov .info file, or a report built outside a git repository (retrieval and the validity pass both require git; this flag does not). When any --tier flag is given, otto cov report bypasses the declarative tiers model entirely — settings tiers, the manual store, and unit harvesting are not consulted; only the exact tiers named on the command line are loaded.

NAME is a free-form label; PATH is an lcov .info tracefile. The bare form --tier system (no path) refers to the implicit tier produced by merging the supplied .gcda directories with lcov; every other tier requires a path. Flag order is precedence order — the first flag is highest-precedence and wins the row coloring when multiple tiers hit the same line.

otto cov report runs/ \
    --tier unit=u.info \
    --tier system \
    --tier integration=i.info \
    --tier manual=m.info \
    --report ./cov_report

This produces a four-tier report with precedence unit > system > integration > manual. A line hit only by the manual tier is colored manual; a line hit by all four is colored unit (the highest-precedence hit wins). The summary table and per-file table both grow a column per tier in the same left-to-right order.

Exclusion Markers¶

lcov’s geninfo honors the standard exclusion markers natively — excluded lines never enter the parsed data, so they never enter a denominator:

• LCOV_EXCL_LINE — exclude one line.

• LCOV_EXCL_START / LCOV_EXCL_STOP — exclude a block.

• LCOV_EXCL_BR_LINE, LCOV_EXCL_BR_START / LCOV_EXCL_BR_STOP — branch-only variants (line/block still counted, only its branches excluded).

The HTML renderer additionally re-scans each rendered source file for these markers so excluded lines and blocks are visually distinct (grey, with a per-file excluded count) instead of reading as ordinary uncovered code. In the row-coloring precedence (see Colors and Legend), excluded always wins, even over a covered, stale, or aging line.

Extend the recognized marker set with custom strings via [coverage.exclusions] markers:

[coverage.exclusions]
markers = ["MYPROJ_NO_COV"]

Custom markers are render-only today: a line marked // MYPROJ_NO_COV is scanned by the renderer alongside the built-in LCOV_EXCL_* set, so it renders grey and excluded like any other excluded line — but unlike the built-in markers (which lcov’s geninfo strips from the parsed data before it ever reaches otto), a custom marker is not passed to the lcov capture as an rc override. The line still counts toward the coverage percentages; only its visual presentation changes. Making custom markers affect the percentages the same way the built-in ones do (wiring them into the lcov capture as rc overrides) is planned follow-up work.

Colors and Legend¶

Each tier renders in its configured color — a CSS named color or #RRGGBB hex, validated when settings load (an invalid value is a settings error, not a report-time surprise). A tier that declares no explicit color gets a default keyed by its kind:

Line states — as opposed to tiers — use fixed, non-configurable colors:

Each annotated source line resolves to exactly one color, in this precedence order: excluded (grey, always wins) → the highest-precedence tier color among tiers with valid evidence on that line → aging (tan — the winning evidence is valid manual data past its max_age, i.e. a faded manual orange) → stale (violet — the only evidence was manual and the code changed since) → uncovered (light red).

Because tier names are free-form, multiple tiers can share a kind, and colors are configurable, the report never relies on convention to explain itself: a legend mapping every tier name and state to its color renders on the project index and on every per-file page.

Output¶

The HTML report is written to the --report directory (default: ./cov_report/index.html). The report shows:

• Project summary with aggregate (all-tier) and per-tier breakdowns, plus per-file stale/aging/excluded counts.

• Legend mapping tier names and line states to their colors.

• Captures provenance table — every contributing manual capture (tier, board, labs, date, tester, ticket, note, and whether the dirty-tree remap applied), shown whenever the store has at least one. E2E and unit data carry no human session to attribute, so automated e2e captures and unit harvests append no provenance row.

• Sortable file table with one column per configured tier.

• Per-file pages with the same summary structure plus annotated source: per-tier hit counts, branch pills (taken/not-taken/ unreachable), and winner-take-all row coloring per Colors and Legend.

store.json is written alongside the HTML report with the same data — validity states, colors, provenance, and each file’s excluded lines included — as the explicit data contract for tooling built on top of a report (e.g. a future frontend) without touching the pipeline.

Embedded (console) coverage¶

Embedded RTOS targets (Zephyr) have no filesystem that otto can scp or sftp from, so the standard .gcda-over-SSH path does not apply. Instead, otto uses a separate embedded fetcher that pulls coverage data over the console.

How it works¶

A coverage-instrumented LLEXT extension built against NASA’s embedded-gcov library dumps its counters as an ASCII hexdump over the serial console when the cov_dump function is called (via llext call_fn <extension> cov_dump → __gcov_exit). Otto captures that output, decodes the hexdump blocks back to binary .gcda files, and stages them under the same per-host directory structure used by the remote fetcher:

<staging_root>/
    <host_id>/
        *.gcda

This means the downstream merge and report pipeline (lcov --capture, path mapping, HTML render) is reused without modification — the embedded and Unix code paths converge at the same .gcda file tree, and otto cov get produces a capture.json for an embedded board exactly as it does for a Unix one. otto cov clean does not yet reach embedded boards — see Coverage Tiers above.

Embedded coverage configuration¶

Declare the extension name in .otto/settings.toml under [coverage.embedded]:

[coverage.embedded]
extension = "my_product_cov"

When extension is set, otto issues llext call_fn my_product_cov cov_dump on every embedded host in the lab that matches the optional [coverage].hosts selector. Non-embedded hosts (Unix, Docker) are skipped automatically.

The dump_command timeout is generous (120 s) because the hexdump is emitted one printk character at a time and can take several seconds for large binaries.

Toolchain for embedded coverage¶

Embedded hosts that need a cross-gcov binary for the report step can declare a toolchain block in hosts.json pointing to the cross toolchain’s gcov:

{
    "element": "sprout_cov",
    "toolchain": {
        "sysroot": "/home/vagrant/zephyr-sdk-0.16.8/arm-zephyr-eabi",
        "gcov": "bin/arm-zephyr-eabi-gcov",
        "lcov": "/usr/bin/lcov"
    }
}

Note that lcov is a host-side Perl orchestrator and is not part of the cross toolchain — point it at the host’s lcov binary (e.g. /usr/bin/lcov), not a path under the sysroot.

See Embedded Hosts for embedded host setup and Lab Configuration for the full hosts.json schema.
